BPD80590

The BPD80590smart power stage fullyintegrates high speed drivers and low resistancehalf-bridge poweroffersswitches.ltcomprehensive thermal monitoringandprotection circuitry in an electrically andthermally optimized package. With a suitablehigh frequency control unit, this power stageforms a compact, high current voltage regulatorsystem with prominent efficiency and transientresponse, excellently catering the needs of highcurrent, high power density applications.

Input Voltage: 4.5V to 16V

90A Current Capability

High Frequency Operation (up to 1.5MHz)

3.3V/5V Compatible Tri-State PwM Input

Zero-Crossing Detection (ZcD) Control

Integrated Thermal Monitor

Integrated Current Monitor

Over-Current Protection (OCP)

• High-Frequency,High-Current and Low-Profile DC/Dc Converters

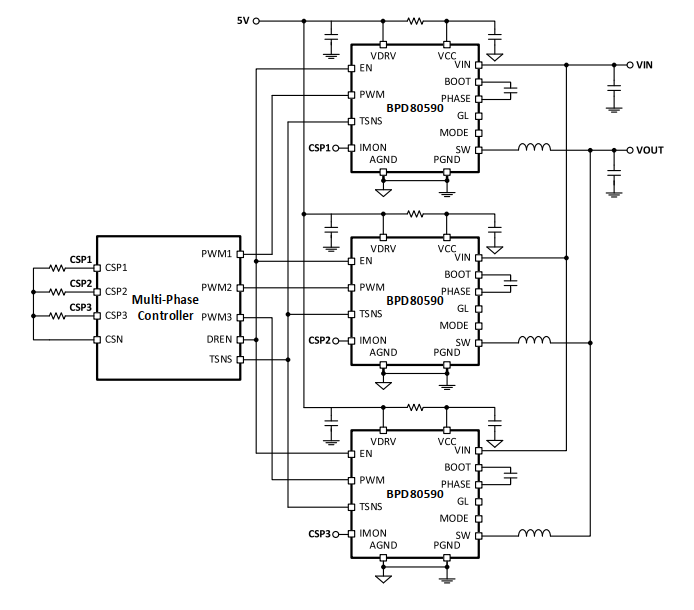

• Multiphase Voltage Regulators for CPUs,GPUs and Memory Arrays

•
